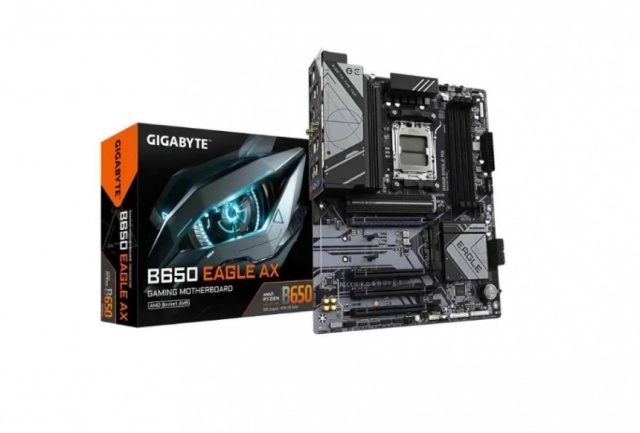

GIGABYTE B650 EAGLE AX rev. 1.x *

Proizvođač

Gigabyte

Tip

Matična ploča

Model

B650 Eagle

Procesorsko ležište (socket)

AMD AM5

Procesor

AMD B650

Tip memorije

4x DDR5

Podržane memorije

7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz

Ostale osobine

Dvokanalni (Dual-channel) režim rada memorije, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory

Maksimalna količina memorija

192GB

Podržane brzine memorije

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

PCI Express x16 slot

1x PCI Express 4.0 (x16 mode)

PCI Express x8 slot

1x PCI Express 4.0

PCI Express x4 slot

2x PCI Express 4.0

SATA priključci (ukupno)

4x SATA III

Ostali skladišni priključci

3x M.2

RAID

RAID 0, RAID 1, RAID 10

Žična mreža (LAN)

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Broj kanala (Audio)

Realtek® Audio CODEC 2/4/5.1/7.1-channel

Priključci na zadnjem panelu

1 x DisplayPort, 1 x HDMI port, 1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R), 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 6 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

Unutrašnji priključci

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 2 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 3 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/
GC-TPM2.0 SPI V2 module only), 1 x Q-Flash Plus button, 1 x serial port header j, 1 x Clear CMOS jumper

Ostali priključci

1 x SPI TPM header, 1 x 4-pin CPU OPT Fan header, 1 x 20-3 pin System Panel header with Chassis intrude function, 3 x AURA Addressable Gen 2 headers, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 2 x 4-pin Chassis Fan headers, 1 x AURA RGB header

Format

ATX

Dimenzije

305mm x 244mm x 35mm
