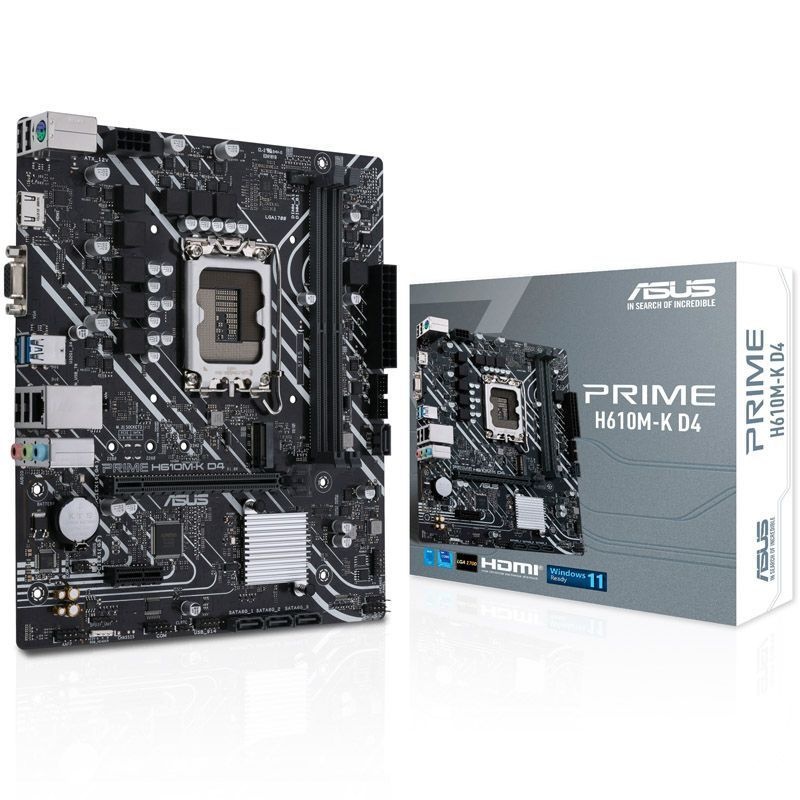

MB s1700 ASUS PRIME H610M-K D4
Opis
Specifikacija:
Proizvodjac ASUS CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 Chipset Memory 2x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1x D-Sub port 1x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors 1x PCIe 4.0 x16 slot Intel® H610 Chipset 1x PCIe 3.0 x1 slot Storage Total supports 1x M.2 slot and 4x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. Ethernet 1x Realtek 1Gb Ethernet
USB Rear
USB (Total 6 ports) 2x
USB 3.2 Gen 1 ports (2x Type-A) 4x
USB 2.0 ports (4x Type-A) Front
USB (Total 4 ports) 1x
USB 3.2 Gen 1 header supports additional 2
USB 3.2 Gen 1 ports 1x
USB 2.0 header supports additional 2
USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition
Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features -
Audio Shielding - Dedicated
audio PCB layers * A chassis with an HD
audio module in the front panel is required to support 7.1 Surround Sound
audio output. Back Panel I/O Ports 2x
USB 3.2 Gen 1 ports (2x Type-A) 4x
USB 2.0 ports (4x Type-A) 1x D-Sub port 1x HDMI® port 1x Realtek 1Gb Ethernet port 3x
Audio jacks 1x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin Chassis Fan header Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Storage related 1x M.2 slot (Key M) 4x SATA 6Gb/s ports
USB 1x
USB 3.2 Gen 1 header supports additional 2
USB 3.2 Gen 1 ports 1x
USB 2.0 header supports additional 2
USB 2.0 ports Miscellaneous 1x RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel
Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128MB Flash
ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2x SATA 6Gb/s cables Miscellaneous 1x I/O Shield 1x M.2 ANCHOR Installation Media 1x Support DVD Documentation 1x User Guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
EAN 4711081565499
