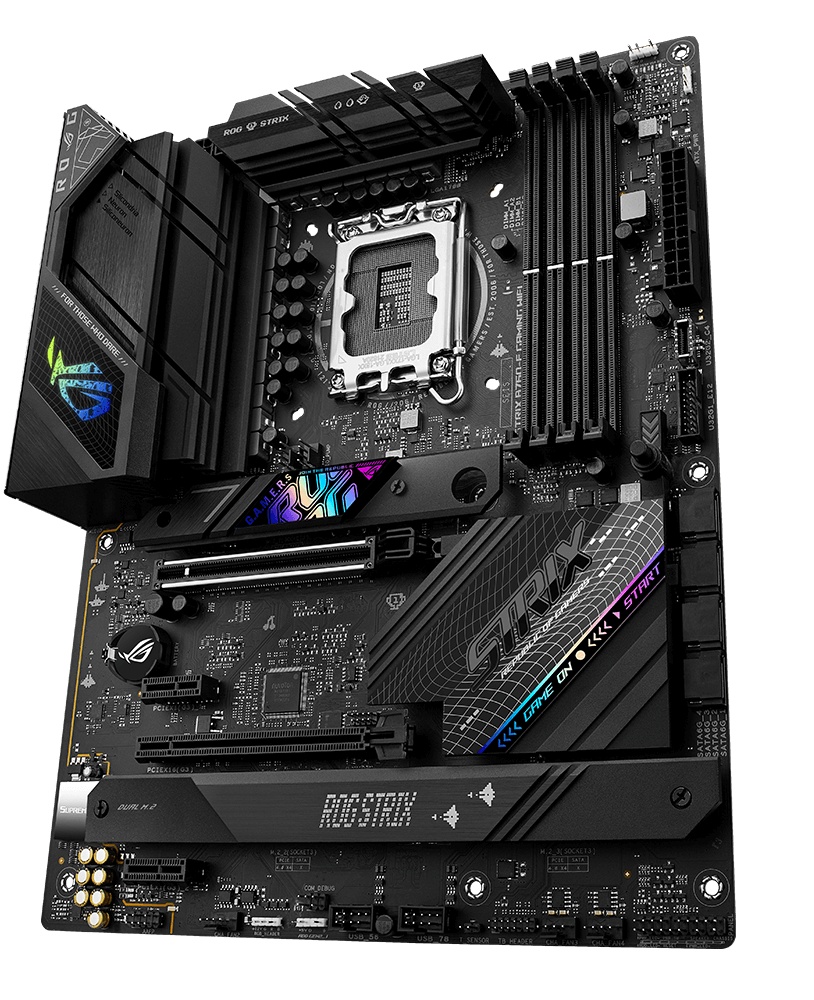

MB s1700 ASUS ROG STRIX B760-F GAMING WIFI

Specifikacija:

Proizvodjac ASUS

EAN 4711081974666 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1x DisplayPort** 1x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1x PCIe 5.0x16 slot (supports x16 mode)** Intel® B760 Chipset** 1x PCIe 3.0 x16 slot (supports x4 mode)*** 2x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 ) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) 4x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA

RAID 0/1/5/10. Ethernet 1x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless &

Bluetooth

Wi-Fi 6E 2x2

Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** *

WiFi 6E 6GHz regulatory may vary between countries. ** The

Bluetooth version may vary, please refer to the

Wi-Fi module manufacturers website for the latest specifications.

USB Rear

USB (Total 8 ports) 1x

USB 3.2 Gen 2x2 port (1x

USB Type-C®) 1x

USB 3.2 Gen 2 port (1x Type-A) 6x

USB 3.2 Gen 1 ports (6x Type-A) Front

USB (Total 7 ports) 1x

USB 3.2 Gen 2 connector 1x

USB 3.2 Gen 1 header supports 2 additional

USB 3.2 Gen 1 ports 2x

USB 2.0 headers support 4 additional

USB 2.0 ports

Audio ROG SupremeFX 7.1 Surround Sound High Definition

Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback"

Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium

audio capacitors -

Audio cover *The rear panel Line out port does not support spatial

audio. If you wish to use spatial

audio make sure to connect your

audio output device to the

audio jack on the front panel of your chassis. Back Panel I/O Ports 1x

USB 3.2 Gen 2x2 port (1x

USB Type-C®) 1x

USB 3.2 Gen 2 port (1x Type-A) 6x

USB 3.2 Gen 1 ports (6x Type-A) 1x DisplayPort 1x HDMI® port 1x

Wi-Fi Module 1x Intel® 2.5Gb Ethernet port 5x

Audio jacks * 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial

audio. If you wish to use spatial

audio make sure to connect your

audio output device to the

audio jack on the front panel of your chassis. Internal I/O Connectors Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector Storage related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports

USB 1x

USB 3.2 Gen 2 connector (supports

USB Type-C® ) 1x

USB 3.2 Gen 1 header supports 2 additional

USB 3.2 Gen 1 ports 2x

USB 2.0 headers support 4 additional

USB 2.0 ports Miscellaneous 3x Addressable Gen 2 headers 1x Aura RGB header 1x Front Panel

Audio header (AAFP) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thermal Sensor header 1 xThunderbolt™ (USB4®) header Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 BIOS 256MB Flash

ROM, UEFI AMI BIOS Manageability WOL by PME Accessories Cables 2x SATA 6Gb/s cables Additional Cooling Kit 1x Thermal pad for M.2 Miscellaneous 1x ASUS

Wi-Fi moving antennas 1x Cable ties package 1x M.2 Q-Latch package 2x M.2 Rubber Package 1x ROG key chain 1x ROG Strix stickers 1x ROG Strix thank you card Documentation 1x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Garancija:3 godine
