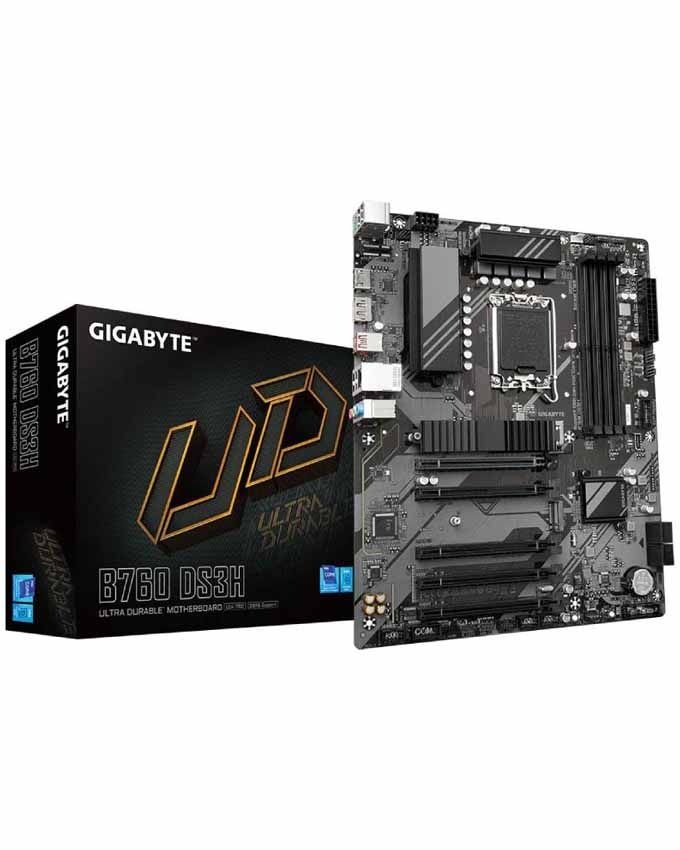

MB s1700 GIGABYTE B760 DS3H rev1.x

Proizvodac Gigabyte

Tip Maticna ploca

Model B760 DS3H rev. 1.x

Procesorsko ležište (socket) Intel® 1700

Procesor Intel® B760

Tip memorije 4x DDR5 (48 GB single DIMM kapacitet)

Podržane memorije 6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 4.800MT/s, 7.600MT/s (O.C.), 7.400MT/s (O.C.), 5.600MT/s (O.C.), 5.400MT/s (O.C.), 5.200MT/s (O.C.), 4.000MT/s

Maksimalna ukupna memorija 192GB

Ostale osobine Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za ECC UDIMM memory, Podrška za Unbuffered ECC memoriju

PCI Express x16 slot 1x

PCI Express 4.0 (x16 mode), 4x

PCI Express 3.0 (x1 mode)

SATA prikljucci (ukupno) 4x SATA 6Gb/s konektora 2x M.2 slot

Žicna mreža (LAN) 1x 10/100/1.000Mbps (Gigabit ethernet)

Broj kanala (Audio) 8 (7.1) Realtek

Prikljucci na zadnjem panelu

DisplayPort prikljucci 1x DisplayPort 1.2,

HDMI prikljucci 1x HDMI 2.0 PS/2 1 (tastatura ili miš),

Ukupno USB prikljucaka 6, Ukupno

USB C prikljucaka 1,

USB 3.2 prikljucci 1 (Tip C) Gen2x2, 1 (Tip A) Gen1,

USB 2.0 prikljucci 4 (Tip A),

RJ-45 (LAN) 1

Audio 3x 3.5mm Unutrašnji

prikljucci

Naponski prikljucci 1x 24 pin Main Power connector, 1x 8-pin ATX 12V power connector

USB 3.2 1 (Tip A) Gen1 Header, 1 (Tip C) Gen1 Header

USB 2.0 2

Audio 1x Front panel

audio, 1x S/PDIF izlaz

Serijski port

Ostali prikljucci 3x System Fan header, 1x front panel header, 1x Clear CMOS jumper, 1x Trusted Platform Module (TPM), 1x Q-Flash Plus button, 2x RGB LED strip headers, 1x reset jumper, 2x addressable LED strip headers, 1x CPU fan header, 1x reset button, 1x CPU fan/water cooling pump header, 1x system fan/water cooling pump header

Format ATX

Dimenzije 305mm x 244mm

EAN 4719331853136

Garancija Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošaca
