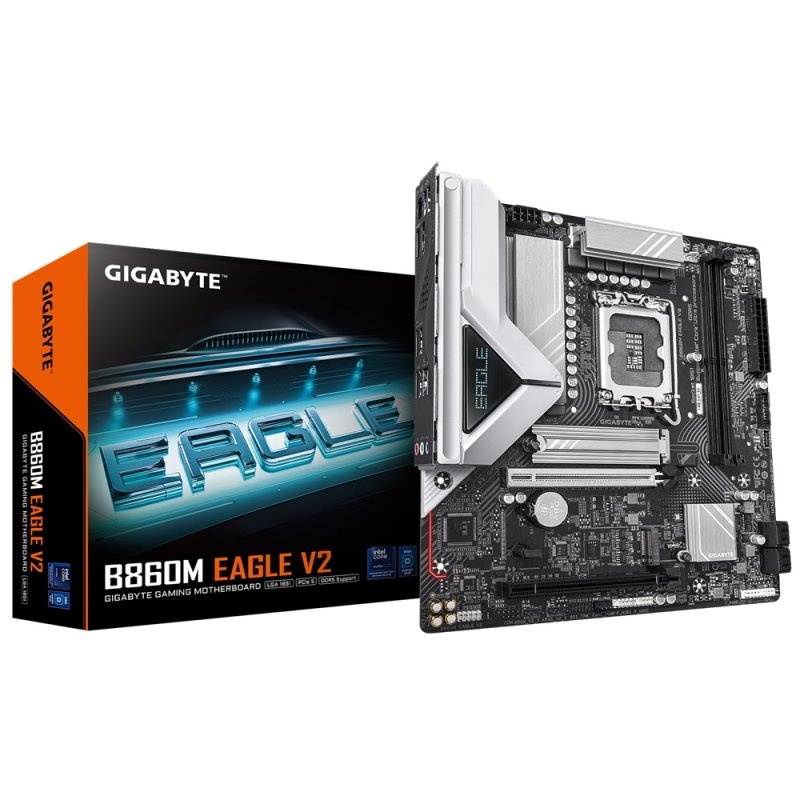

MB s1851 GIGABYTE B860M EAGLE V2

Specifikacija

Proizvodjac GIGABYTE IGABYTE B860M EAGLE V2 Chipset: Intel B860 Express Chipset Rozmerový formát: Micro ATX Form Factor; 24.4cm x 22.5cm Podpora pro procesory: Intel ® Core™ Ultra Patice procesoru: LGA1851 Pamet: 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Grafické výstupy: 1x HDMI port, supporting a maximum

resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3 1x DisplayPort, supporting a maximum

resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version Zvuková karta: Realtek®

Audio CODEC High Definition

Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Ethernet: Realtek® 2.5GbE

LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozširující sloty: 1x

PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot 1x

PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Úložný prostor: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) 4x SATA 6Gb/s connectors

RAID radic:

RAID 0,

RAID 1,

RAID 5, and

RAID 10 support for SATA storage devices

USB: 1x

USB Type-C® port with

USB 3.2 Gen 1 support, available through the internal

USB header 5x

USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal

USB header) 3x

USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4x

USB 2.0/1.1 ports available through the internal

USB headers Porty na zadním panelu: 1x PS/2 keyboard/mouse port 1x HDMI por* 1x DisplayPort* 3x

USB 3.2 Gen 1 ports 3x

USB 2.0/1.1 ports 1x RJ-45 port 3x

audio jacks Interní porty: Napájení 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector Související s ventilátorem a chlazením 1x CPU fan header 1x CPU fan/water cooling pump header 1x system fan header 1x system fan/water cooling pump header Související s úložištem 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors

USB 1x

USB Type-C® header, with

USB 3.2 Gen 1 support 1x

USB 3.2 Gen 1 header 2x

USB 2.0/1.1 headers Ostatní 3x addressable RGB Gen2 LED strip headers 1x front panel header 1x front panel

audio header 1x S/PDIF Out header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper BIOS: 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

EAN 4719331869656

Garancija 3 godine
