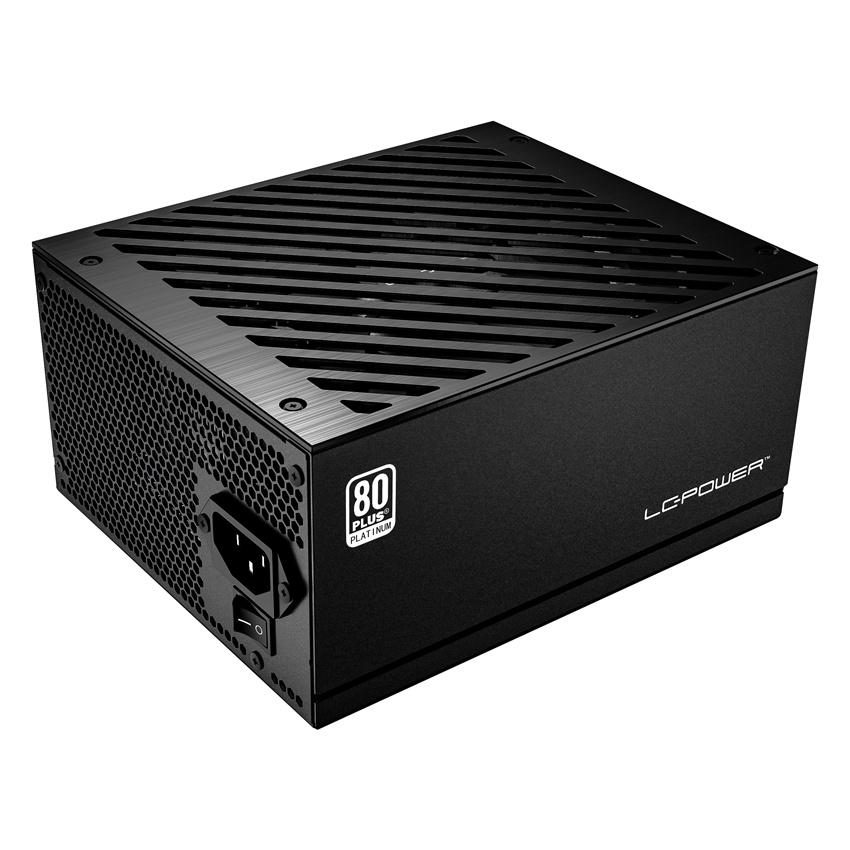

Napajanje 1200W LC Power LC1200P V3.0 80 PLUS Platinum PCIe 5.0

Opis

Specifikacija Proizvodjac LC POWER Power supply series Platinum Series ATX standard ATX V3.0 Connectors 20+4 pin mainboard 1x 650 mm 4+4 pin mainboard 12 V (8 pin EPS) 2x 650 mm 4 pin mainboard 12 V 1x 800 mm PCI-Express 5.0 12+4 pin 2x 650 mm IMPORTANT: Please connect only one graphics card up to 450 W or 600 W to the power supply.
Alternatively two graphics cards up to 300 W each can be connected.
PCI-Express 6+2 pin 8x overall (4x 675 mm / 4x 750 mm) How to use (at the same time) Option 1: 20x SATA & 3x PATA Option 2: 16x SATA & 6x PATA SATA 20x overall (5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm) PATA 6x overall (2x 500 mm/ 2x 650 mm / 2x 800 mm) FDD 1x 900 mm Mark of conformity CE / TÜV Fan 135 mm PFC active Dimension PSU 86 x 180 x 150 mm Dimension retail 120 x 295 x 225 mm Weight (product / overall) 3,67 / 4,03 kg Power rating 1200 W +3,3 V 20 A +5 V 20 A max.
combined 100 W +12 V 100 A max.
combined 1200 W Certified 80 PLUS® PLATINUM Efficiency up to 92 % Standby consumption < 0,5 W - Er P 2013 Temperature control for case fan yes Security circuitry OVP = Over-Voltage Protection OCP = Over-Current Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection Full range (110 V / 220 V) yes Haswell compatible yes Colour black Manufacturer code LC1200 P V3.0 EAN 4260070129827 Garancija 3 godine
