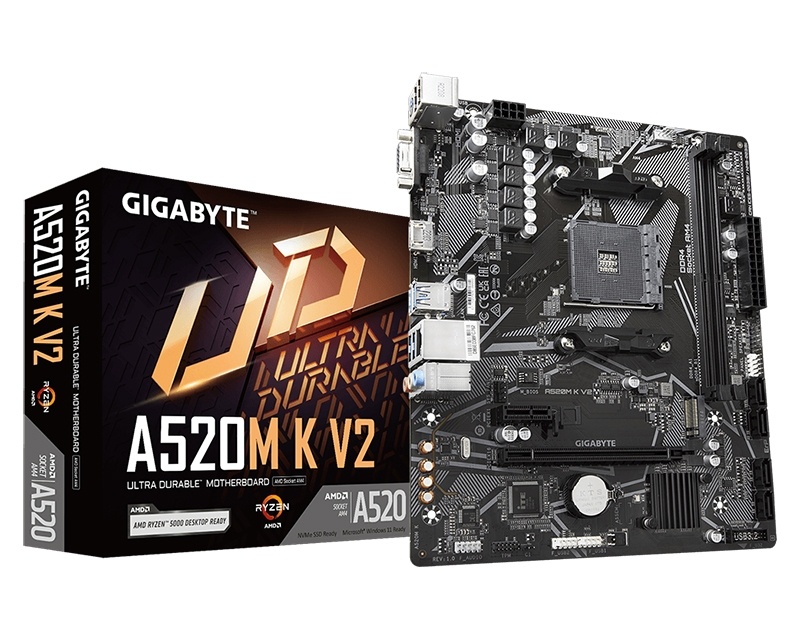

MB AM4 GIGABYTE A520M K V2 rev.1.x *

Specifikacija:

Proizvodjac GIGABYTE

EAN 4719331852771 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1x D-Sub port, supporting a maximum

resolution of 1920x1200@60 Hz 1x HDMI port, supporting a maximum

resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB

Audio Realtek®

Audio CODEC High Definition

Audio 2/4/5.1/7.1-channel * You can change the functionality of an

audio jack using the

audio software. To configure 7.1-channel

audio, access the

audio software for

audio settings.

LAN Realtek® GbE

LAN chip (1 Gbps/100 Mbps) Expansion Slots CPU: 1x

PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1x

PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface CPU: 1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4x SATA 6Gb/s connectors Support for

RAID 0,

RAID 1, and

RAID 10

USB CPU: 4x

USB 3.2 Gen 1 ports on the back panel Chipset: 2x

USB 3.2 Gen 1 ports available through the internal

USB header 6x

USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal

USB headers) Internal I/O Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel

audio header 1x

USB 3.2 Gen 1 header 2x

USB 2.0/1.1 headers 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x speaker header 1x Clear CMOS jumper 1x chassis intrusion header Back Panel Connectors 1x PS/2 keyboard/mouse port 1x D-Sub port 1x HDMI port 4x

USB 3.2 Gen 1 ports 2x

USB 2.0/1.1 ports 1x RJ-45 port 3x

audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard

model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version)

LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 23.3cm x 19.8cm

Garancija:Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošaca
