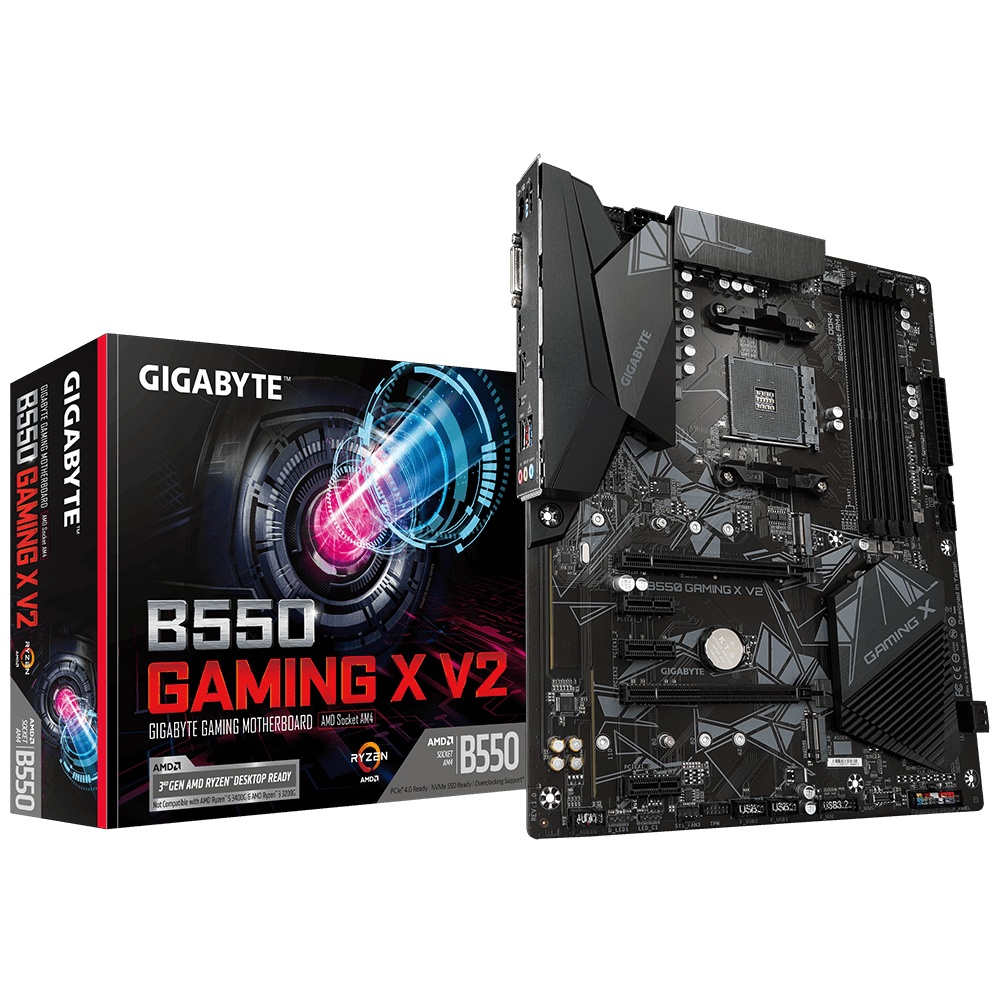

MB AM4 GIGABYTE B550 GAMING X V2 rev. 1.x

Opis

Specifikacija: Proizvodjac GIGABYTE CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 M Hz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 M Hz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 M Hz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1 Rx8/2 Rx8 memory modules Support for non-ECC Un-buffered DIMM 1 Rx8/2 Rx8/1 Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
Please visit GIGABYT Es website for details on configuring the audio software.
LAN Realtek® Gb E LAN chip (1000 Mbit/100 Mbit) Expansion Slots 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PC Ie 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PC Ie 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PC Ie 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: Supporting PC Ie 3.0 x1 mode Storage Interface 1? x M.2 connector (M2 A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SS Ds: 3rd Generation AMD Ryzen™ processors support SATA and PC Ie 4.0 x4/x2 SS Ds 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PC Ie 3.0 x4/x2 SS Ds 1 x M.2 connector (M2 B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SS Ds: Supporting SATA and PC Ie 3.0 x4/x2 SS Ds 4 x SATA 6 Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 USB Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks I/O Controller i TE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
@BIOS Easy Tune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Back
